QUICK MOLD CHANGE SYSTEM
![](http://www.cheongi.co.kr/wp-content/uploads/2017/03/CG-SERIES4.png)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/03/CG-SERIES3.png)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/03/CG-SERIES2.png)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/03/CG-SERIES1.png)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/03/CG-SERIES4-60x43.png)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/03/CG-SERIES3-60x43.png)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/03/CG-SERIES2-60x43.png)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/03/CG-SERIES1-60x43.png)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/02/CHEON_GI_3계층_PRODUCTNAME_AND_FEATURESCHEONGI.png)

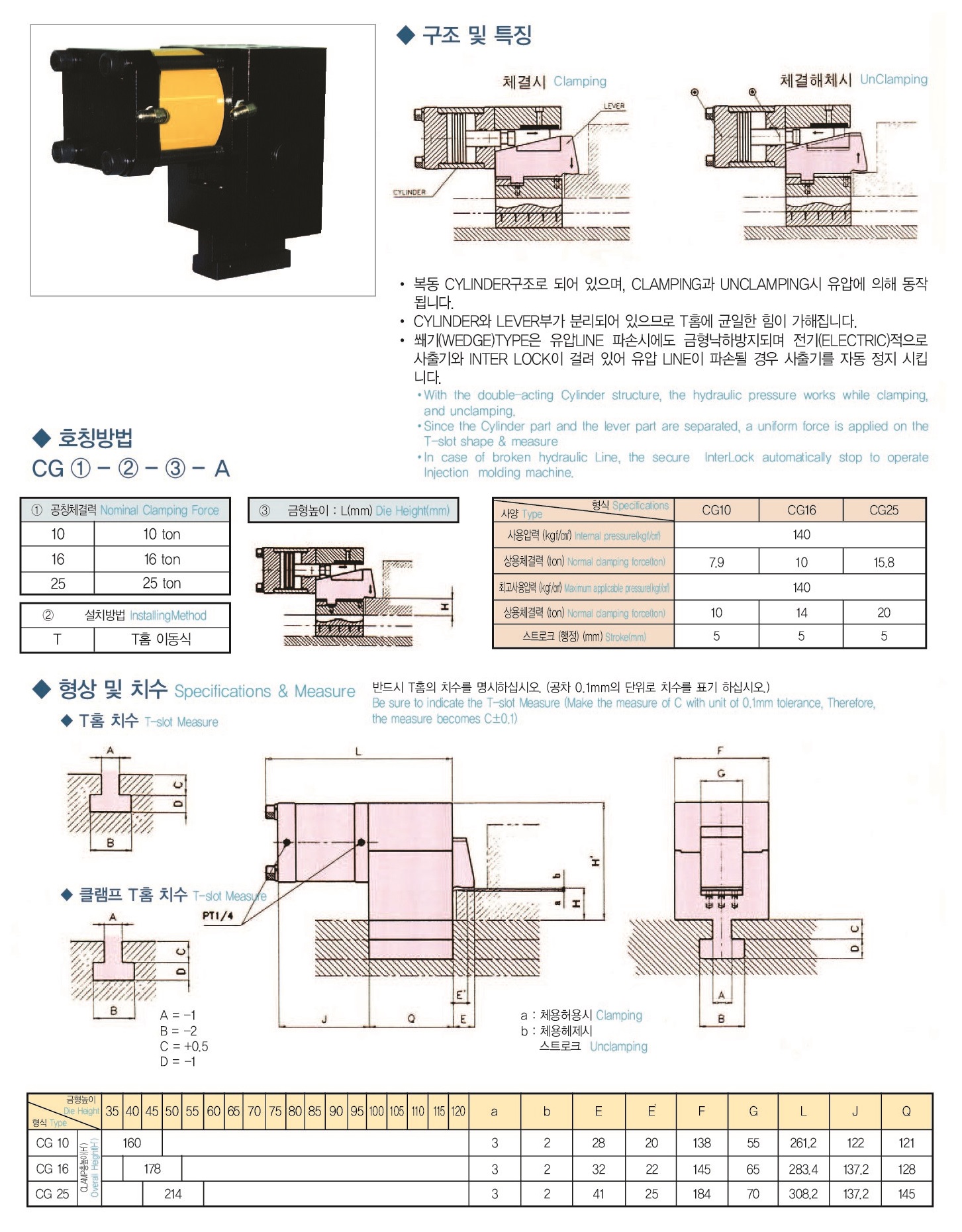

CG
- It is WEDGE and Double- Acting Cylinder type
- It can be clamped and unclamping by
hydraulic pressure. (No Die Spring)
![](http://www.cheongi.co.kr/wp-content/uploads/2017/02/CHEON_GI_1계층_INTRODUCTIONCHEONGI.png)
- CHEON GI’s CG HI-CLAMP is one of the components for Q.M.C. SYSTEM.
- With the Double-Acting Cylinder structure, the hydraulic pressure works while clamping and unclamping.
- Since the Cylinder part and the lever part are separated, a uniform force is applied on the T-slot shape and measure.
- In case of broken hydraulic Line, the secure INTER-LOCK automatically stop to operate Injection Molding Machine.
